Product Details
＋
Features:
Type: Ahead heavy tactileOperation Force: 59±15g
Pre-Travel: 2.0±0.5mm
Total Travel: 3.4mm
Stem: POM
Top Housing: Nylon
Bottom Housing: Nylon
Spring: 22mm double-stage gold-plated
LED Support： Plug-In
Pre-lubed: Yes

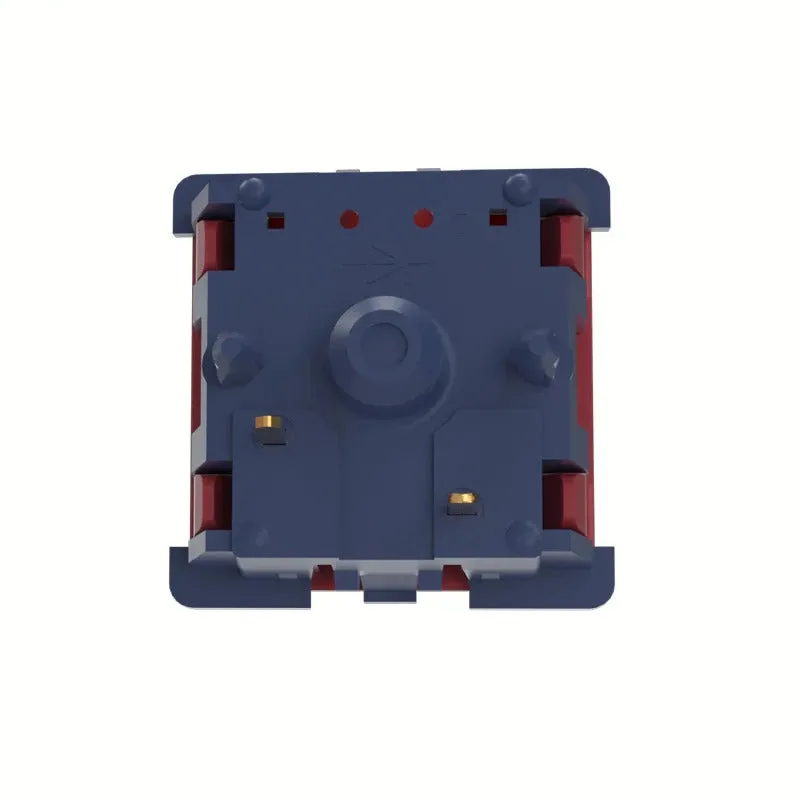

Pins: 5-Pin

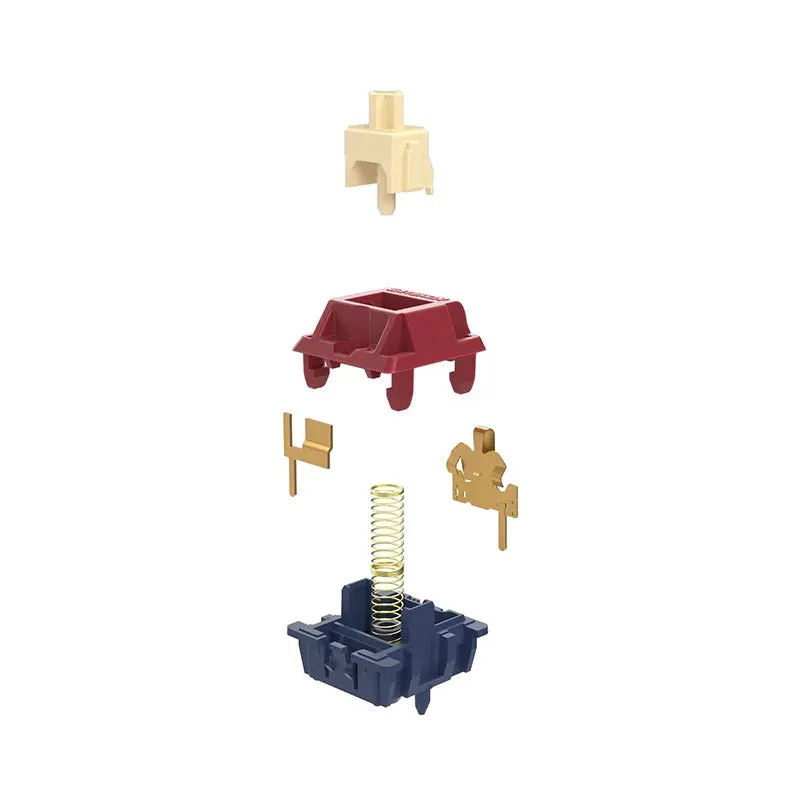

The five-pin switch adopts an MX switch structure, and the special is made of POM material, which has the characteristics of high toughness, high wear resistance, and high smoothness.

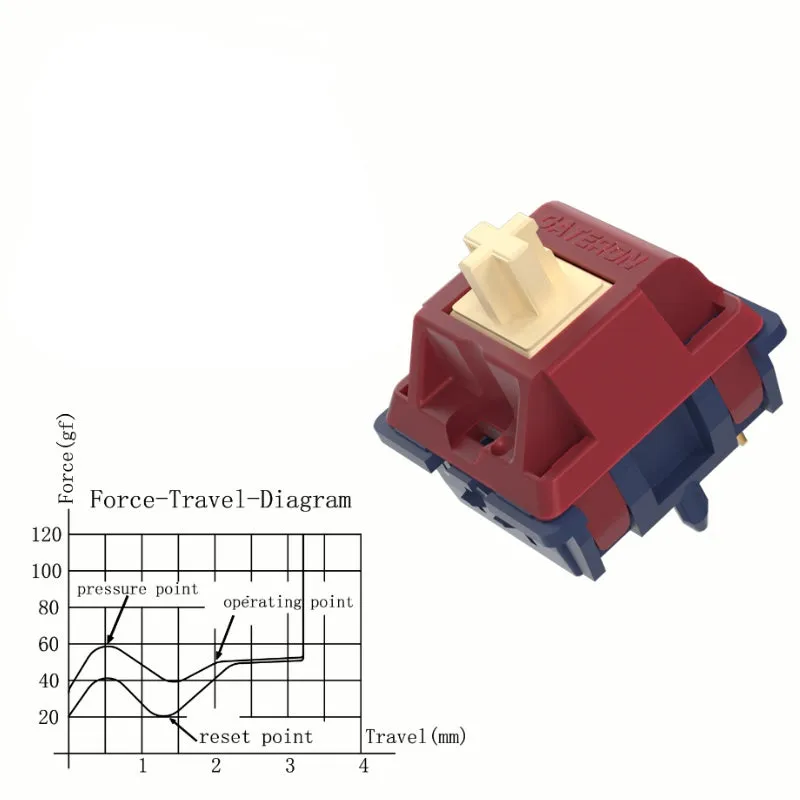

The peak of the conventional paragraph switch appears at 1-1.5mm, and the paragraph drop is relatively small, the is ahead of the big paragraph, and the peak is 0.5mm, and the paragraph drop is larger and the touch is more obvious.
22mm double-stage gold-plated spring, The spring is preferably made of SUS304 high-hardness material, with full resilience and rigidity.
The tolerance of spring force is reduced and the consistency of hand feeling is improved.
The surface is plated with gold to achieve the effects of oxidation resistance and corrosion resistance.
The pin is upgraded to be harder in the three-layer to be a more reliable connection, less deformation of pins, and a longer lifetime.
