These bow thruster panels are available in complete or compact versions. Both panels can be easily fitted in a 52 mm diameter. The panels are waterproof and provided with a switched outlet (max. 3A) to connect extra equipment.

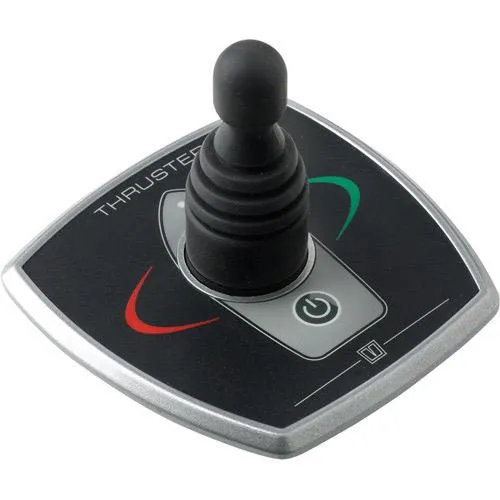

Aluminium bow thruster panel type BPAS and BPAJ

Front panel 97 x 95 mm

Built-in depth 90 mm

Installation hole Dia: 52 mm

Backwards compatible with other VETUS bow thruster panels

Unique features

Built-in time lapse device when reversing direction or rotation

Automatic switch off after 30 minutes inactivity

Thruster switches off after continuous running for more than 2 minutes and resets itself after 5 seconds

Child protection

Aluminium Bezel

IP65 Ingression protected
